Quadrant vs Offset Quadrant Shower Enclosures – Which Is Right for Your Bathroom?

Quadrant and offset quadrant shower enclosures are two of the most popular choices for corner installations — and at first glance, they can look remarkably similar.

Both feature a curved front, both make excellent use of bathroom corners and both can be a great alternative to a square or rectangular enclosure.

But there is one important difference:

A standard quadrant is generally equal in width and depth, while an offset quadrant has one side longer than the other.

That seemingly small difference can have a surprisingly big impact on the amount of showering space you get and how well the enclosure works within your bathroom.

In this Allbits Shower Enclosure Guide, we'll explain the differences between quadrant and offset quadrant shower enclosures, where each works best, what you need to measure and how to decide which one is right for your bathroom.

If you're still exploring all your options, our Complete Shower Enclosure Buying Guide is the ideal place to start.

INTERNAL LINK: Add live link to The Complete Shower Enclosure Buying Guide.

What Is a Quadrant Shower Enclosure?

A quadrant shower enclosure is designed to fit neatly into the corner of a bathroom.

Two straight sides sit against the walls while the front of the enclosure forms a curve.

Unlike a square enclosure, there isn't a projecting front corner extending into the room.

That curved shape is one of the reasons quadrants are such a popular choice for:

• En-suites
• Cloakroom shower rooms
• Smaller bathrooms
• Corner installations
• Bathrooms where floor space is limited

You can browse Quadrant Shower Enclosures at Allbits to see the different sizes and styles available.

You can also read our Ultimate Guide to Quadrant Shower Enclosures for a more detailed look at this enclosure style.

What Is an Offset Quadrant Shower Enclosure?

An offset quadrant shower enclosure uses the same basic corner-fitting principle but has a longer rectangular-style footprint.

Instead of both wall dimensions being approximately equal, one side is longer than the other.

For example, you might see sizes such as:

• 1000 x 800mm
• 1200 x 800mm
• 1200 x 900mm

The exact sizes available vary between manufacturers and ranges.

The extra length provides a larger showering area while retaining the space-saving curved front associated with a quadrant.

Browse Offset Quadrant Shower Enclosures at Allbits.

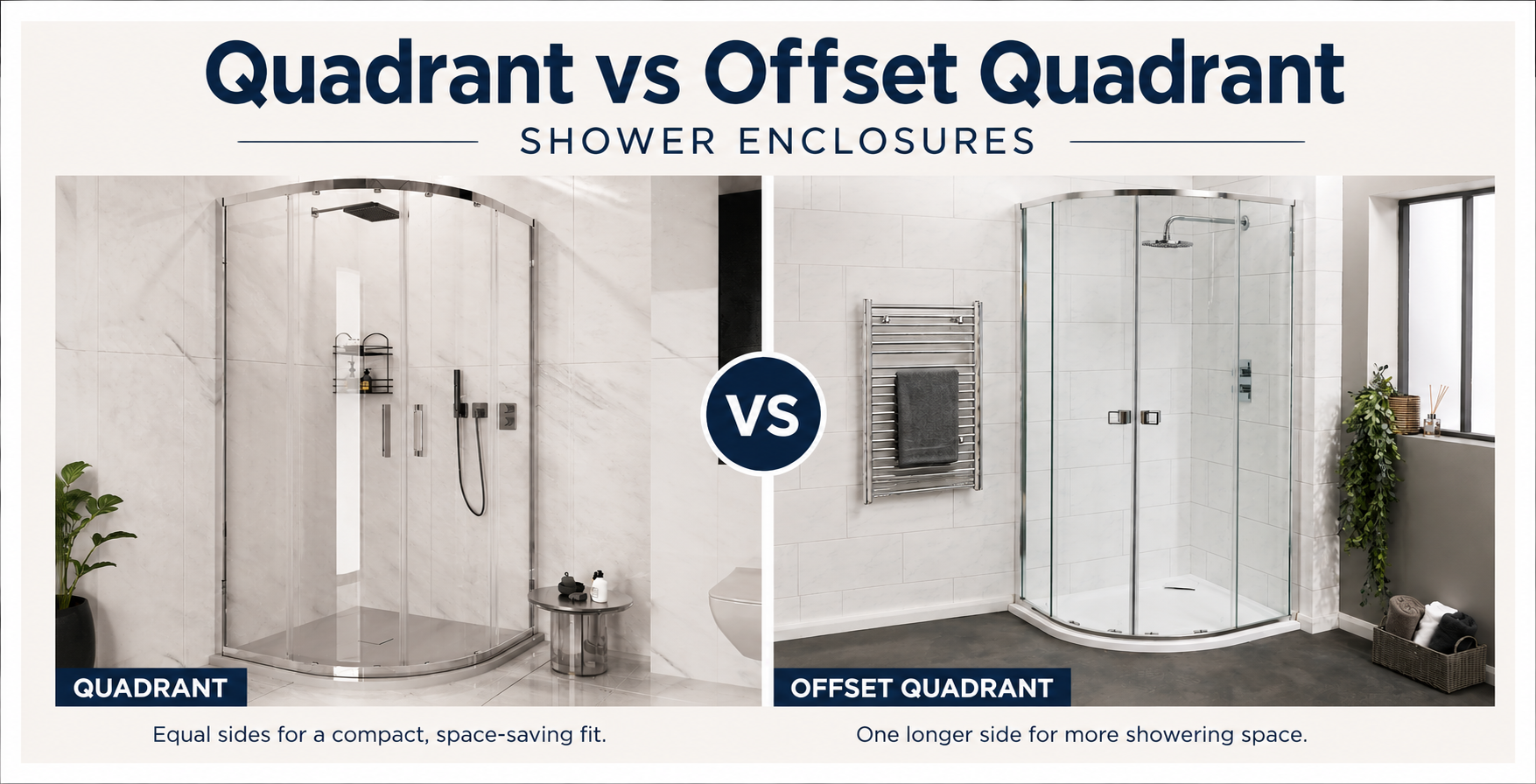

Quadrant vs Offset Quadrant – What's the Difference?

The easiest way to understand the difference is to think about their footprint.

Quadrant

A standard quadrant generally has two equal wall dimensions.

For example:

900 x 900mm

It creates a relatively compact, balanced corner showering area.

Offset Quadrant

An offset quadrant has one wall dimension longer than the other.

For example:

1200 x 800mm

This gives you more internal showering space without creating the full projecting corner of a rectangular enclosure.

At a Glance

The key question is therefore not simply which looks better?

It's:

How much usable space does your bathroom give you?

Which Takes Up Less Space?

If you're working with a genuinely compact bathroom, a standard quadrant will usually have the smaller footprint.

The curved front removes the projecting corner you'd get with a square enclosure, helping to preserve valuable floor space around the shower.

That can be particularly helpful when your enclosure is close to:

• A toilet
• Basin
• Vanity unit
• Bathroom door
• Heated towel rail

For very small bathrooms and en-suites, a quadrant is often one of the first enclosure styles worth considering.

Our guide to Quadrant Shower Enclosures for Small Bathrooms has more advice on using this design in compact spaces.

Which Gives You More Showering Space?

This is where the offset quadrant comes into its own.

Because one side is longer, an offset quadrant can provide additional standing and movement space inside the enclosure.

That can make it feel noticeably roomier during everyday use.

If your bathroom has enough wall length to accommodate one, an offset quadrant can be a great middle ground between:

a compact quadrant

and

a larger rectangular enclosure.

You retain the softer, curved front while gaining some welcome extra elbow room.

And let's face it, nobody has ever stepped into a shower and complained that they had too much elbow room.

Which Is Best for a Small Bathroom?

For the smallest rooms, we'd normally look at a standard quadrant first.

Its compact footprint and curved front make excellent use of a corner without unnecessarily eating into the room.

However, don't automatically dismiss an offset quadrant.

Some bathrooms are narrow in one direction but have plenty of usable wall length in the other.

In that situation, an offset quadrant can make clever use of the longer wall while keeping the enclosure relatively compact in depth.

So rather than asking:

"Is my bathroom small?"

ask:

"Where is the usable space in my bathroom?"

That's a much better way to choose.

Which Is Better for an En-Suite?

Both can work brilliantly.

A quadrant may be preferable where every centimetre of floor space matters.

An offset quadrant can be better if the en-suite has enough length along one wall and you'd like a more generous showering area.

Remember to consider the whole room rather than just the space occupied by the shower.

You still need comfortable access to:

• The toilet
• Basin
• Bathroom door
• Storage
• Towels
• The shower entrance itself

An enclosure that technically fits isn't necessarily an enclosure that's pleasant to live with.

Do Quadrant Shower Enclosures Have Sliding Doors?

Many quadrant and offset quadrant enclosures use sliding doors.

This combination makes a lot of sense.

The enclosure already has a space-conscious curved footprint, and sliding doors don't require a large outward opening area.

That makes them particularly useful where a hinged door might clash with nearby furniture or sanitaryware.

Always check the individual product specification, though, because door arrangements and entry widths vary between models.

You can compare the different options in the Allbits Shower Enclosures & Doors collection.

What About Entry Width?

This is an important detail that's easily overlooked.

Two enclosures with similar external dimensions can have different door openings or entry widths.

When comparing products, don't look only at the headline dimensions.

Check:

• Overall enclosure size
• Adjustment range
• Door configuration
• Actual entry width

A slightly larger enclosure isn't much use if the particular door arrangement doesn't provide the access you need.

Left-Hand vs Right-Hand Offset Quadrant Enclosures

Here's where offset quadrants require a little extra attention.

Depending on the product, an offset quadrant enclosure or tray may have a left-hand or right-hand orientation.

This relates to how the longer section and curved front are configured for installation.

The safest approach is simple:

Never order based purely on the words "left hand" or "right hand".

Check the manufacturer's diagram for the exact product and compare it with your bathroom layout.

Different manufacturers may illustrate orientation differently, so the technical drawing should always have the final say.

This is one of those occasions when guessing can produce a rather expensive cardboard box sitting in your hallway.

Do I Need a Special Shower Tray?

Your enclosure and shower tray need to be compatible in:

• Shape
• Dimensions
• Orientation where applicable
• Installation requirements

A standard quadrant enclosure requires a compatible quadrant tray.

An offset quadrant requires an appropriately sized offset quadrant tray, including the correct orientation where the design demands it.

Don't assume that two products with similar headline measurements will automatically fit together.

Check the manufacturer's technical information before ordering.

You can compare the available options in the Allbits Shower Trays collection.

How Do I Measure for a Quadrant Enclosure?

For a standard quadrant, you'll generally need to measure along both walls from the corner.

Take accurate measurements and don't assume both sides are identical until you've actually checked them.

You should also check:

• Wall plumb
• Shower tray dimensions
• Finished wall surfaces
• Enclosure adjustment range
• Nearby obstacles
• Entry clearance

Our How to Measure for a Shower Enclosure guide takes you through the process in detail.

INTERNAL LINK: Add live link to How to Measure for a Shower Enclosure.

How Do I Measure for an Offset Quadrant?

The principle is similar, but because an offset quadrant has unequal sides you must establish both dimensions carefully.

For example:

1200mm along one wall

and

800mm along the other.

You'll also need to establish the required orientation.

Before ordering, check:

• Long-side dimension
• Short-side dimension
• Left/right configuration
• Shower tray size
• Adjustment range
• Door opening/entry width
• Manufacturer's technical drawing

Do not simply turn the measurements around and assume the enclosure will work.

Quadrant vs Offset Quadrant: Which Looks Better?

That's entirely subjective — but they do create slightly different visual effects.

Quadrant Enclosures

Their more symmetrical footprint can create a neat, balanced appearance.

They're particularly well suited to compact bathrooms where you want the enclosure to feel integrated rather than dominant.

Offset Quadrant Enclosures

The elongated shape tends to create a more substantial shower area.

They can work particularly well in larger contemporary bathrooms or layouts where the shower occupies a longer section of wall.

Both benefit from the softer appearance of curved glass compared with a strongly angular square or rectangular enclosure.

Which Is Easier to Clean?

There isn't a huge difference purely because one is quadrant and the other offset quadrant.

Cleaning will depend more on:

• Glass treatment
• Door mechanism
• Number of profiles
• Rollers and tracks
• Accessibility
• Manufacturer design

If your chosen enclosure has an easy-clean glass treatment, follow the manufacturer's care instructions to maintain it.

Regularly removing excess water from the glass with a shower squeegee can also help reduce water marks and limescale build-up.

Quadrant vs Offset Quadrant – Pros and Cons

Quadrant Shower Enclosure Advantages

• Excellent for compact bathrooms
• Space-saving curved front
• Neat corner installation
• Often paired with sliding doors
• Wide choice of popular sizes
• Balanced appearance

Quadrant Shower Enclosure Considerations

• Less internal room than larger offset designs
• Entry widths vary
• Correct tray compatibility is essential

Offset Quadrant Shower Enclosure Advantages

• More internal showering space
• Retains a curved, space-conscious front
• Makes good use of longer wall areas
• Can feel more spacious than a standard quadrant
• Excellent compromise between quadrant and rectangular designs

Offset Quadrant Shower Enclosure Considerations

• Requires more wall length
• Orientation may need careful checking
• Correct left/right tray and enclosure combination can be important
• Takes up more floor space than a compact quadrant

So, Which Should You Choose?

Choose a quadrant shower enclosure if:

• Your bathroom is particularly compact
• You want to minimise the shower footprint
• You have roughly equal available space along both walls
• You want a neat corner enclosure
• External door clearance is limited

Shop Quadrant Shower Enclosures

Choose an offset quadrant shower enclosure if:

• You have more available wall length
• You'd like additional room inside the shower
• Your bathroom layout suits an elongated enclosure
• You still want the space-saving benefit of a curved front
• A rectangular enclosure would feel too bulky

Shop Offset Quadrant Shower Enclosures

Quadrant or Offset Quadrant Checklist

Before making your final choice, check:

• Available width

• Available depth

• Wall lengths

• Shower tray size

• Enclosure adjustment range

• Entry width

• Door configuration

• Nearby furniture and sanitaryware

• Left/right orientation if required

• Manufacturer's technical drawing

• Finished wall dimensions

And if you're replacing an existing enclosure:

Measure the actual installation area rather than assuming the old enclosure size.

Future-you will be grateful.

Frequently Asked Questions

What is the main difference between a quadrant and offset quadrant shower enclosure?

A standard quadrant generally has two equal wall dimensions, while an offset quadrant has one side longer than the other. The offset design therefore usually provides more internal showering space.

Is an offset quadrant better than a quadrant?

Not necessarily. An offset quadrant provides more showering room, but a standard quadrant has a smaller footprint. The best option depends on the size and layout of your bathroom.

Are quadrant shower enclosures good for small bathrooms?

Yes. Their curved front and corner installation make quadrant enclosures particularly useful where floor space is limited.

For more advice, read our guide to Quadrant Shower Enclosures for Small Bathrooms.

Does an offset quadrant need a special tray?

You'll need a shower tray compatible with the enclosure's size, shape and orientation. Always check the manufacturer's specifications for both products.

Browse Shower Trays at Allbits.

Are offset quadrant shower enclosures left and right handed?

Some designs have specific left- and right-hand configurations. Always use the manufacturer's product diagram to determine which version is required for your installation.

Can I replace a quadrant with an offset quadrant?

Potentially, but only if your bathroom has sufficient additional space and the plumbing, tray and installation arrangement are suitable. Measure the available area carefully before choosing the replacement.

Find Your Perfect Shower Enclosure at Allbits

Ultimately, the choice between a quadrant and offset quadrant comes down to how you want to use the space available.

A standard quadrant is difficult to beat when you're trying to create a comfortable shower in a compact bathroom.

An offset quadrant gives you more room to move while retaining that useful curved-front design.

At Allbits Plumbing Supplies, you can compare both styles alongside shower trays, showers and alternative enclosure designs to find the right combination for your bathroom.

Shop Quadrant Shower Enclosures at Allbits

Shop Offset Quadrant Shower Enclosures at Allbits

Shop All Shower Enclosures & Doors

Shop Shower Trays
