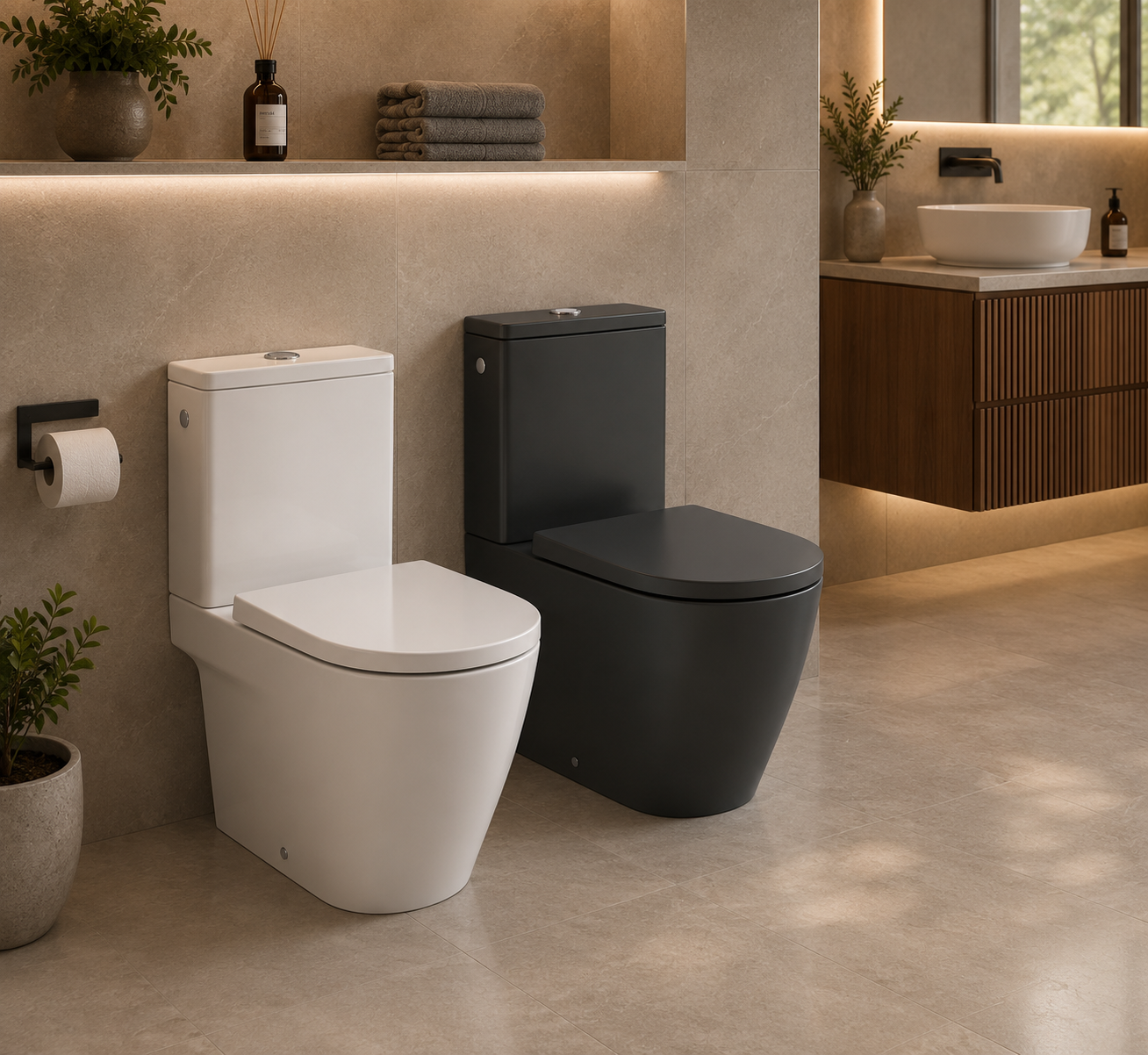

Wall-Hung vs Close-Coupled Toilets: Which Is Best?

A Complete Guide to Choosing the Right Toilet for Your Bathroom

Choosing a toilet used to be fairly straightforward. Most homes had a traditional floor-standing toilet with the cistern sitting directly behind the pan.

Today, there's considerably more choice.

One of the biggest decisions when planning a new bathroom is whether to choose a wall-hung toilet or a close-coupled toilet.

A close-coupled toilet offers familiar styling, straightforward installation and plenty of choice, while a wall-hung toilet conceals the cistern and lifts the pan away from the floor to create a clean, contemporary appearance.

Neither is automatically better.

The right choice depends on your bathroom size, plumbing, budget, preferred style and how much installation work you're prepared to undertake.

In this Allbits guide, we'll compare the two options and help you decide which is right for your bathroom.

What Is a Close-Coupled Toilet?

A close-coupled toilet is the design most people immediately picture when they think of a WC.

The toilet pan sits on the floor, while the cistern is positioned directly behind and above it.

The pan and cistern are separate ceramic components but are connected together to create one complete unit.

Close-coupled toilets are available in:

• Modern designs
• Traditional designs
• Rimless models
• Comfort-height models
• Short-projection versions
• Open-back designs
• Closed-back designs

Roca describes close-coupled toilets as its most common toilet configuration, with the cistern fitted directly to the pan.

What Is a Wall-Hung Toilet?

A wall-hung toilet is mounted above the floor rather than standing on it.

The pan appears to float against the wall.

But don't worry...

It's not actually being held up by two screws and optimism. 😂

Behind the finished wall is a strong installation frame that supports the WC. A concealed cistern is normally incorporated into the installation system, leaving the flush plate visible for operation and servicing.

Roca offers dedicated installation systems for wall-hung WCs, including its Duplo S frame and concealed-cistern range.

The finished result is extremely clean and minimalist.

Wall-Hung vs Close-Coupled at a Glance

Which Is Easier to Clean?

Wall-Hung Toilet

This is one of the biggest advantages of going wall hung.

Because the toilet doesn't touch the floor, you can clean underneath it.

There is:

• No pedestal meeting the floor
• No awkward area around the back of the pan
• More accessible floor
• Less external ceramic to clean around

Roca highlights easier cleaning as one of the major benefits of wall-mounted WCs because the floor remains completely clear.

Combine this with a rimless wall-hung toilet and you get a particularly cleaning-friendly arrangement.

The inside of the bowl has fewer difficult areas to reach, while the floor underneath remains accessible.

Close-Coupled Toilet

A close-coupled WC requires cleaning around the base and behind or beside the pan.

However, modern closed-back close-coupled toilets have improved matters considerably.

The ceramic extends towards the wall, concealing much of the pipework and reducing awkward exposed areas.

So if you want easy cleaning without installing a wall-hung system, a rimless closed-back close-coupled toilet is an excellent compromise.

💡 Big Al's Expert Tip

If easy cleaning is your priority, think about the whole toilet, not just whether it's rimless. A rimless bowl helps inside; a closed-back or wall-hung design can make cleaning outside much easier too.

Which Makes a Small Bathroom Look Bigger?

Winner: Wall Hung 🏆

This is where wall-hung toilets really shine.

Because you can see the flooring underneath the WC, the room can appear less crowded.

The cistern is also hidden, reducing visual clutter.

Roca specifically recommends wall-mounted WCs as a space-enhancing option and notes that keeping the floor visible can make compact bathrooms and guest toilets feel larger.

However, there's an important distinction:

Looking smaller isn't necessarily the same as physically taking up less space.

The concealed cistern and frame still need somewhere to go.

They may be:

• Built into a wall
• Installed within a service void
• Boxed out
• Concealed inside suitable furniture

That construction takes up some depth.

So measure the finished installation, not merely the WC pan.

Can a Close-Coupled Toilet Work in a Small Bathroom?

Absolutely.

This is where compact close-coupled toilets become very useful.

For example, the Roca The Gap Square Rimless Closed-Back Close-Coupled Toilet currently available from Allbits has a compact 600mm projection.

The round version is also listed at 600mm projection.

So don't automatically assume you need wall hung because your bathroom is small.

A well-chosen compact close-coupled toilet may fit perfectly without requiring a concealed frame.

We'll explore this further in our upcoming:

Best Toilets for Small Bathrooms

and

Toilet Projection Guide

Which Is Easier to Install?

Winner: Close Coupled 🏆

In most straightforward bathroom installations, a close-coupled toilet is simpler.

The cistern is visible and attached directly to the pan, and no concealed support frame needs to be built into the room.

This can make it particularly attractive when:

• Replacing an existing toilet
• Keeping the current bathroom layout
• Working to a tighter budget
• Minimising building work
• Access to existing plumbing is important

A wall-hung toilet needs more planning.

You'll normally need:

• Wall-hung WC pan
• Compatible WC frame
• Concealed cistern
• Flush plate
• Suitable waste connection
• Water supply
• Appropriate wall construction or boxing
• Installation and finishing work

So always compare the complete installed system, not simply the price of the ceramic pan.

Are Wall-Hung Toilets Strong?

This is probably one of the most common questions customers ask.

Understandably!

Nobody wants to sit down while wondering whether they're about to become part of the downstairs ceiling. 😂

A properly installed wall-hung toilet is supported by a purpose-designed frame, not simply by the finished plasterboard or tiles.

Roca's installation systems are specifically engineered to provide stable support for wall-hung sanitaryware.

Correct frame selection and professional installation are therefore extremely important.

What Happens if the Concealed Cistern Needs Maintenance?

This worries customers more than almost anything else.

"What happens if something goes wrong? Do I have to smash the tiles off?"

Normally, no.

Concealed cistern systems are designed with service access.

On many systems, internal components can be reached through the opening behind the removable flush plate.

That means common service components can often be accessed without dismantling the finished wall.

However, the exact servicing arrangement depends on the installation system chosen.

💡 Big Al's Expert Tip

Don't buy the WC pan first and think about the concealed frame afterwards. Choose the pan, frame, cistern and flush plate as one installation system so you know everything is compatible before the wall is finished.

Which Gives You More Choice?

Close Coupled

Close-coupled toilets offer enormous variety.

You'll find:

• Budget-friendly models
• Premium models
• Compact toilets
• Rimless toilets
• Comfort-height toilets
• Traditional designs
• Contemporary designs
• Round pans
• Square pans
• Open-back pans
• Closed-back pans

For a straightforward replacement project, they're difficult to beat.

Wall Hung

Wall-hung toilets offer plenty of design choice too, particularly for contemporary bathrooms.

Roca currently offers wall-hung models across different designs, colours and sizes, including compact and rimless options.

Which Is Better for a Family Bathroom?

I'd usually put close coupled slightly ahead for a straightforward family-bathroom renovation.

Why?

Because it offers:

• Simple installation
• Easy access
• Huge product choice
• Rimless options
• Soft-close seats
• Compact options
• Comfort-height options
• Familiar operation

But if you're carrying out a complete renovation and easy floor cleaning is particularly important, a wall-hung rimless WC can be fantastic.

So there isn't really a loser here.

Which Is Better for a Cloakroom?

This one is interesting.

A compact wall-hung WC can make a cloakroom look larger by keeping the floor visible.

But if installing the concealed frame requires a substantial boxed-out wall, you need to calculate the finished projection carefully.

A compact close-coupled toilet can sometimes be the simpler solution.

Measure first.

Porcelain second. 😂

Can You Adjust the Height of a Wall-Hung Toilet?

One useful feature of a wall-hung installation is that the fitting height can often be determined during installation.

Roca notes that wall-hung WC height can be adjusted during installation, which can be useful for taller users or people with restricted mobility.

A close-coupled toilet's pan height, by contrast, is fixed by the ceramic design.

If you specifically want a higher floor-standing toilet, look for a comfort-height model.

For example, Allbits currently stocks the Roca The Gap Round Rimless Comfort Height close-coupled toilet, with a pan height listed at 440mm.

We'll cover that properly in our dedicated Comfort Height Toilets Explained guide.

Wall-Hung Toilet Costs: Remember the Hidden Bits

This is really important when comparing prices online.

A close-coupled package may include:

• Pan
• Cistern
• Flush mechanism
• Toilet seat
• Fixing kit

A wall-hung WC listing may include only:

• Pan
• Seat

You may then separately need:

• Installation frame
• Concealed cistern
• Flush plate
• Fittings
• Installation
• Boxing or wall construction
• Tiling and finishing

So a £250 wall-hung pan and a £400 close-coupled toilet cannot necessarily be compared directly.

💡 Big Al's Expert Tip

When budgeting for wall hung, price the complete installation, not the WC pan. The ceramic may only be one part of the total cost.

What About Rimless?

Both types are available with rimless technology.

If you've read our previous guide, you'll know I'm already a fan of rimless for one very unglamorous reason:

Cleaning toilets isn't fun enough to make it unnecessarily difficult. 😂

Rimless bowls remove the conventional enclosed rim, giving better access to the inside of the bowl for cleaning. Roca offers rimless technology across both close-coupled and wall-hung models.

Read:

Rimless Toilets Explained: Are They Worth It?

Big Al Recommends: Wall-Hung Toilets from Allbits

🏆 Premium Roca Choice: Roca Inspira Square Rimless Wall-Hung Pan

This is our premium wall-hung recommendation.

The Roca Inspira Square combines:

• Wall-hung installation
• Rimless bowl
• Contemporary square styling
• Soft-close seat
• 560mm projection
• 25-year manufacturer's guarantee

Its wall-hung design keeps the bathroom floor clear, while the rimless bowl makes internal cleaning easier.

View Roca Inspira Square at Allbits:

https://allbits.co.uk/products/roca-inspira-square-rimless-wall-hung-pan

The current Allbits package includes the pan and soft-close seat; the concealed installation system needs to be considered separately.

🏆 Great-Value Wall-Hung Choice: Oregon Rimless Wall-Hung Toilet

For customers who want the wall-hung look at a more accessible price point, the Oregon Rimless Wall-Hung Pan is a strong option.

It features:

• 540mm projection
• Rimless bowl
• Soft-close seat included
• Contemporary styling
• 10-year manufacturer's ceramic guarantee

View the Oregon Wall-Hung Toilet at Allbits:

https://allbits.co.uk/products/oregon-rimless-wall-hung-pan-soft-close-seat

🏆 Alternative Compact Wall-Hung Choice: Naxos Rimless Wall-Hung Toilet

The Naxos is another neat contemporary option with:

• 540mm projection
• Rimless design
• Soft-close seat included
• White ceramic finish
• 10-year ceramic guarantee

View the Naxos Wall-Hung Toilet at Allbits:

https://allbits.co.uk/products/naxos-rimless-wall-hung-pan-including-soft-close-seat

Big Al Recommends: Close-Coupled Toilets from Allbits

🏆 Best All-Round Roca Choice: Roca The Gap Round Rimless

The Roca The Gap Round is a brilliant all-round family-bathroom choice.

It combines:

• Rimless bowl
• Closed-back design
• Compact 600mm projection
• Soft-close seat
• 4.5/3-litre dual flush
• Dual outlet
• 25-year manufacturer's guarantee

View Roca The Gap Round at Allbits:

https://allbits.co.uk/products/roca-the-gap-round-rimless-closed-back-close-coupled-pan

🏆 Best Contemporary Square Choice: Roca The Gap Square Rimless

Prefer sharper lines?

The Roca The Gap Square combines contemporary square styling with a compact 600mm projection.

The current Allbits package includes:

• Rimless pan
• Compact cistern
• Soft-close seat
• 4/2-litre dual flush
• Fixing kit

View Roca The Gap Square at Allbits:

https://allbits.co.uk/products/roca-the-gap-square-rimless-closed-back-close-coupled-pan

🏆 Best Roca Value Choice: Roca Andes Rimless

The Roca Andes is a close-coupled, open-back rimless WC and provides a more accessible entry into the Roca range.

Its open-back design can also be useful where easier access to existing plumbing is desirable.

View Roca Andes at Allbits:

https://allbits.co.uk/products/roca-andes-rimless-toilet-pick-up-pack

Which Should You Choose?

Choose Wall Hung If:

• You love a minimalist bathroom
• You want the floor completely clear
• Easy floor cleaning is important
• You're carrying out a full renovation
• You're happy to install a concealed frame
• You want a premium contemporary appearance
• You want installation-height flexibility

Choose Close Coupled If:

• You want straightforward installation
• You're replacing an existing toilet
• You want to keep costs under control
• You prefer easy direct access to the cistern
• You want maximum product choice
• You need a comfort-height option
• You prefer traditional styling
• You don't want to build a concealed frame into the room

Before You Buy Checklist

☐ Measure the available bathroom space

☐ Check the finished toilet projection

☐ Check the soil-pipe position

☐ Check the water-supply position

☐ Decide whether you want the cistern visible or concealed

☐ For wall hung, choose a compatible WC frame

☐ Check whether a concealed cistern is included with the frame

☐ Choose a compatible flush plate

☐ Check whether the toilet seat is included

☐ Check whether the seat is soft close

☐ Consider rimless technology

☐ Check the desired sitting height

☐ Check door and furniture clearance

☐ Compare the COMPLETE installation cost

☐ Arrange suitable professional installation

Common Buying Mistakes

Comparing Pan Prices Instead of Complete Systems

Probably the biggest mistake with wall-hung toilets.

Forgetting the Frame

A wall-hung pan needs appropriate structural support.

Forgetting the Flush Plate

The flush plate is part of both the operation and finished appearance.

Assuming Wall Hung Automatically Saves Physical Space

It can improve the sense of space enormously, but the concealed installation still occupies room.

Ignoring Soil-Pipe Position

Existing plumbing can significantly affect installation complexity.

Buying an Incompatible Frame

Check compatibility before ordering.

Finishing the Wall Before Testing Everything

Your installer should properly install, test and commission the concealed system before the wall is permanently finished.

That one's worth remembering!

Frequently Asked Questions

Are Wall-Hung Toilets Better Than Close-Coupled Toilets?

Not necessarily.

Wall hung is excellent for minimalist design and easy floor cleaning, while close coupled offers simpler installation and enormous choice.

Do Wall-Hung Toilets Save Space?

They can make a bathroom feel significantly more spacious because the cistern is hidden and the floor remains visible. Compact wall-hung pans are also available. However, remember to account for the concealed frame and finished wall depth.

Can a Wall-Hung Toilet Fall Off the Wall?

A correctly specified and professionally installed wall-hung WC is supported by a purpose-designed installation frame.

It isn't simply attached to plasterboard.

How Do You Repair a Concealed Cistern?

Serviceable components are generally designed to be accessible through the flush-plate/service opening, depending on the system.

Are Close-Coupled Toilets Old Fashioned?

Definitely not.

Modern close-coupled toilets can feature rimless bowls, concealed pipework, short projections, dual flushes and sleek soft-close seats.

Roca's The Gap range is a good example.

Which Is Better for a Small Cloakroom?

Either can work.

A compact wall-hung toilet can create a fantastic sense of space, while a short-projection close-coupled model may offer simpler installation.

Measure the complete finished arrangement before deciding.

Can Wall-Hung Toilets Be Fitted at Different Heights?

Many frame systems allow the WC height to be determined during installation. Roca specifically highlights adjustable installation height as one benefit of wall-hung WCs.

Can I Get a Rimless Wall-Hung Toilet?

Yes. The Roca Inspira Square, Oregon and Naxos options currently available from Allbits are all examples.

Which Is Cheaper?

Close-coupled toilets will generally have the advantage when comparing complete installations because they don't normally require a separate concealed frame, flush plate and associated wall construction.

The exact cost depends on the products and installation.

Final Thoughts

So, wall hung or close coupled?

For a straightforward replacement, family bathroom or cost-conscious renovation, a good-quality close-coupled toilet is extremely difficult to beat.

For a complete bathroom renovation where clean lines, easy floor cleaning and contemporary styling are priorities, a wall-hung toilet can look fantastic.

And there's a middle ground too.

A closed-back rimless close-coupled toilet such as Roca The Gap gives you much of the streamlined, easy-clean appearance customers want without requiring a concealed support frame.

Whichever route you choose, remember the Allbits golden rules:

Measure the space.

Check the plumbing.

Check what's included.

And don't choose your toilet based purely on the pretty photograph. 😂

Browse the complete Allbits Toilet Collection:

https://allbits.co.uk/collections/toilets

Related Allbits Guides

• The Ultimate Guide to Buying a Toilet
• Rimless Toilets Explained: Are They Worth It?
• Back-to-Wall Toilets Explained
• Comfort Height Toilets Explained
• Toilet Projection Guide
• Best Toilets for Small Bathrooms
• Traditional vs Modern Toilets
• Soft-Close Toilet Seats Explained
• How to Measure for a New Toilet
• What is a Bidet? Complete Bidet Buying Guide
