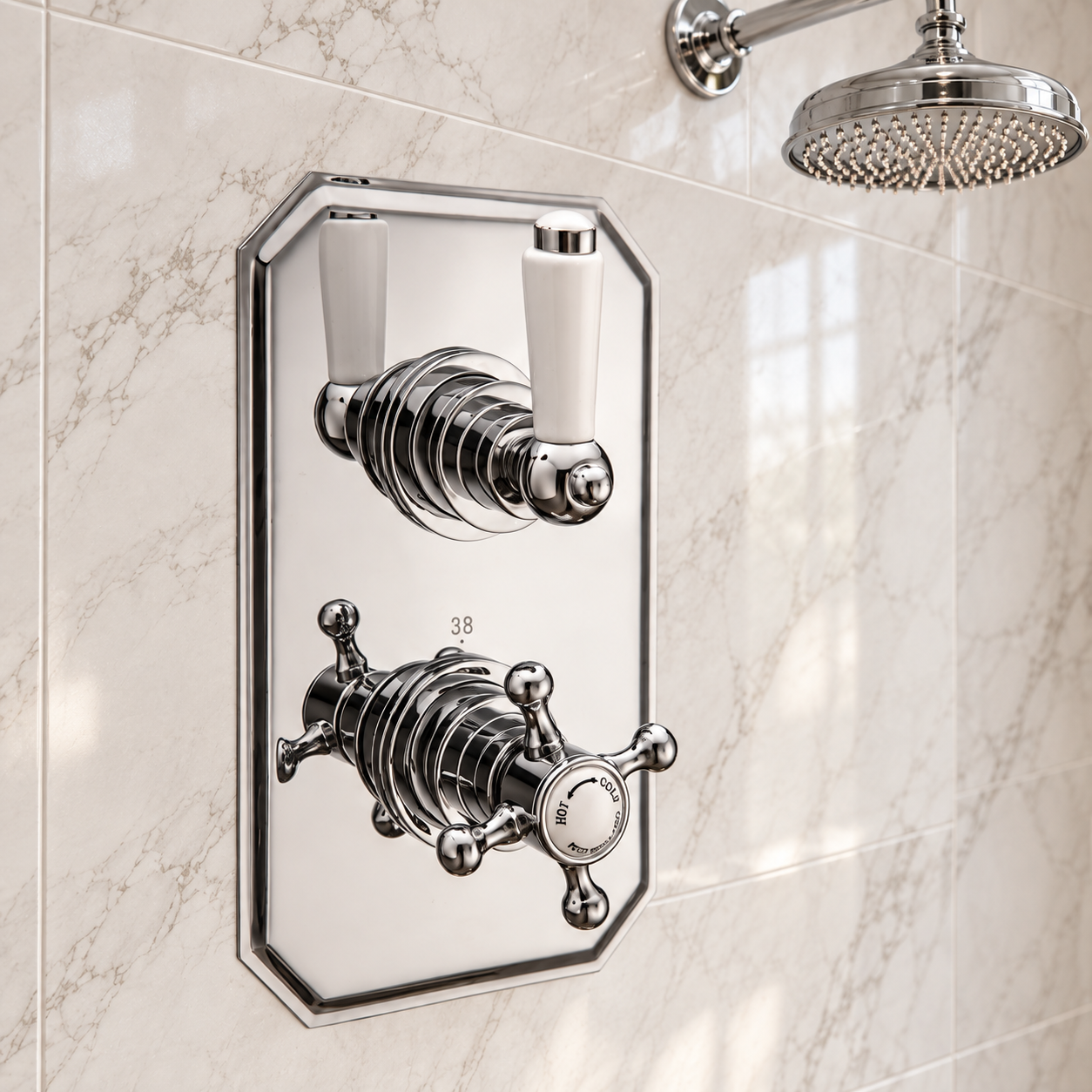

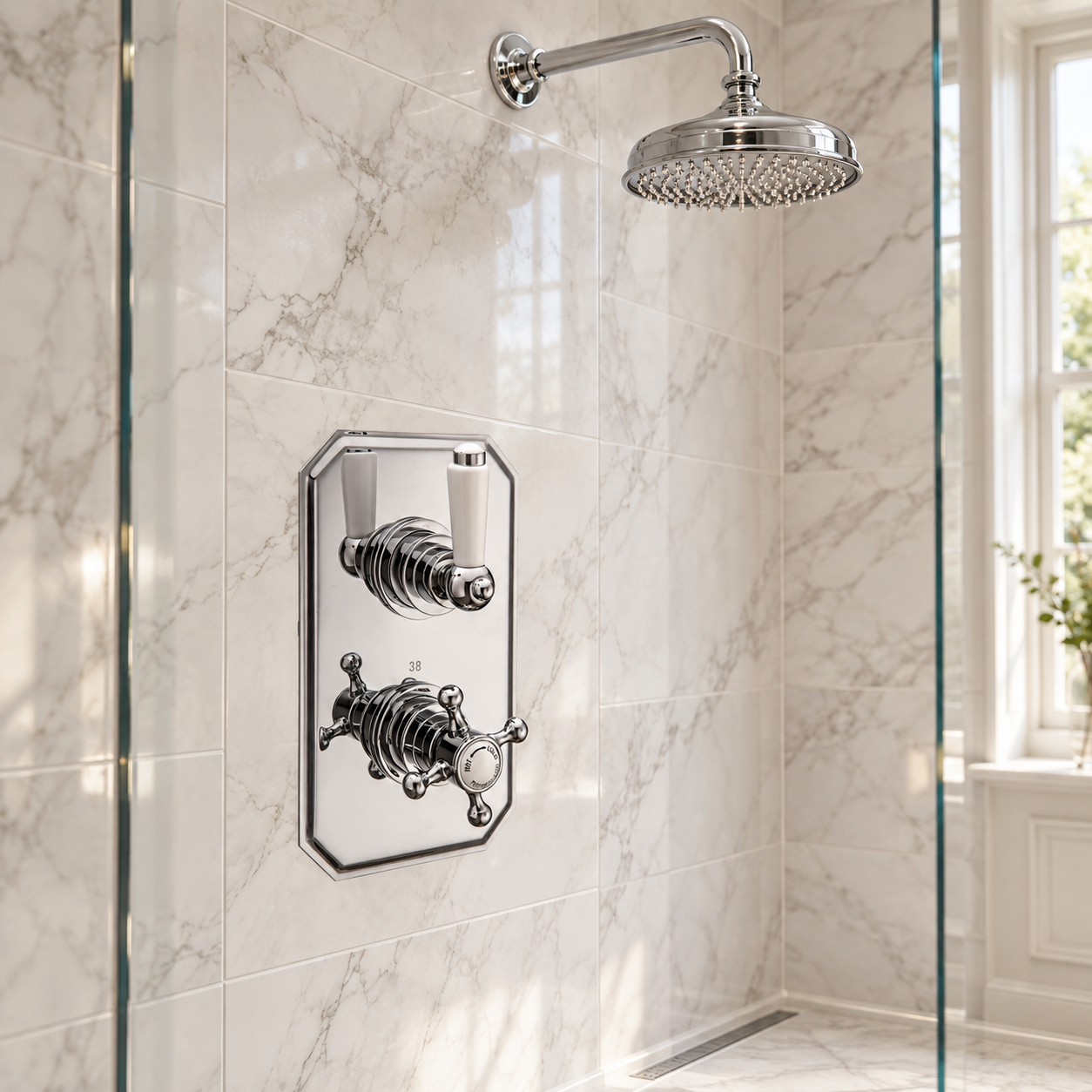

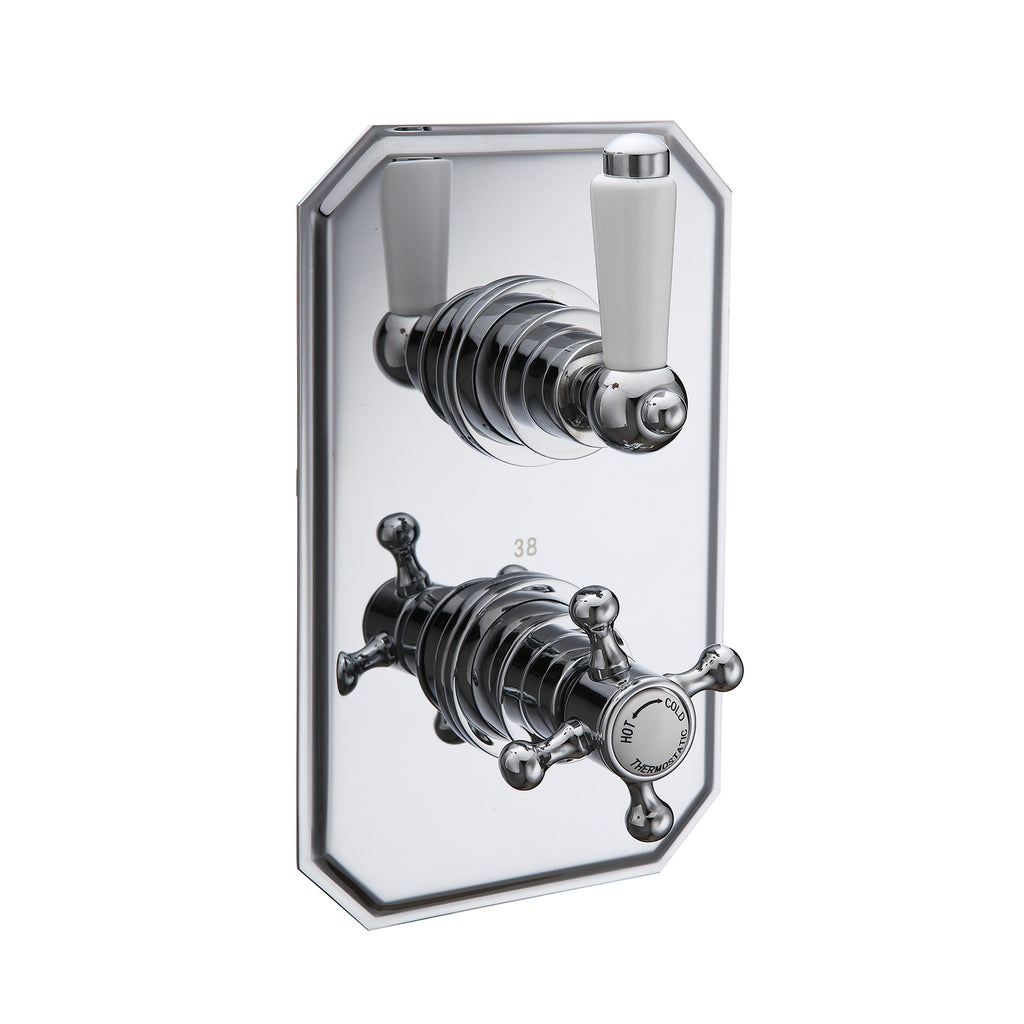

The Pantiles Traditional One-Way Concealed Thermostatic Shower Valve – Chrome & White

Bring timeless traditional styling and dependable temperature control to your shower with The Pantiles One-Way Concealed Thermostatic Shower Valve. Combining an elegant Chrome finish with classic White ceramic details, this beautifully designed valve is ideal for heritage, Victorian and traditionally styled bathrooms.

Designed to operate one shower outlet, the valve can be paired with a fixed shower head, slide-rail kit or another compatible single shower accessory. Its concealed installation keeps the working components hidden behind the wall, leaving only the refined controls and brass wall plate visible.

The upper control manages the water flow, while the thermostatic temperature control maintains a comfortable and consistent showering temperature. The valve is preset to 38°C and includes a push-button safety override, allowing higher temperatures up to 48°C when required.

For additional protection, the valve automatically shuts off if either the hot or cold water supply fails. Its solid brass body, thermostatic cartridge and ceramic disc valve provide reliable performance for everyday use.

Product Features

• Traditional concealed thermostatic shower valve
• Operates one shower outlet
• Suitable for a fixed shower head, slide-rail kit or compatible single outlet
• Elegant Chrome finish with White ceramic detailing
• Solid brass valve body
• Brass wall plate
• Zinc-alloy handles with ceramic indices
• Thermostatic cartridge for consistent temperature control
• Ceramic disc valve for smooth and reliable operation
• Preset safety temperature of 38°C
• Push-button override allows temperatures up to 48°C
• Automatic shut-off if the hot or cold water supply fails
• Suitable for all plumbing systems
• Suitable for hot and cold supplies with preferably balanced pressures
• Chrome plated to BS EN 248
• Complies with BS EN 1111
• Manufactured to comply with TMV2 requirements
• 10-year guarantee against manufacturing faults, excluding serviceable parts

Technical Specifications

• Product code: 167.PT1TSV
• Finish: Chrome and White
• Minimum water pressure: 0.5 bar
• Maximum water pressure: 6.0 bar
• Maximum pressure differential: 5:1
• Hot and cold inlets: Two G3/4-inch BSP female connections
• Outlet: One G1/2-inch BSP female connection
• Valve body: Brass
• Wall plate: Brass
• Handles: Zinc alloy with ceramic indices
• Cartridge: Thermostatic cartridge and ceramic disc valve
• Product weight: Approximately 2.88kg

Please Note

This is a one-way valve designed to operate a single shower outlet. The shower head, shower arm, handset, hose and other shower accessories are not included unless stated separately.

For the best performance, the hot and cold water supplies should be balanced. The pressure difference between the supplies must not exceed 5:1.

Frequently Asked Questions

What does a one-way shower valve control?
A one-way valve controls one shower outlet, such as a fixed overhead shower or a slide-rail handset.

Is this shower valve thermostatic?
Yes. Its thermostatic cartridge maintains a consistent water temperature and helps protect against sudden fluctuations in the hot or cold supply.

Does the valve have a temperature safety stop?
Yes. The temperature is preset to 38°C. A push-button override allows the temperature to be increased up to 48°C when required.

What happens if the hot or cold water supply fails?
The valve automatically shuts off to help protect the user from an unsafe change in water temperature.

What water pressure does the valve require?
The recommended operating pressure is between 0.5 and 6.0 bar. The hot and cold supplies should preferably be balanced, with a maximum pressure differential of 5:1.

Can this valve operate a shower head and handset together?
No. This valve controls one outlet only. A multi-outlet or diverter valve is required to operate more than one shower function.

Does the shower head come with the valve?
No. This product is the concealed shower valve only. The shower head, arm and other accessories should be selected separately.

Does the Pantiles shower valve have a guarantee?
Yes. It comes with a 10-year guarantee against manufacturing faults, excluding serviceable parts.
