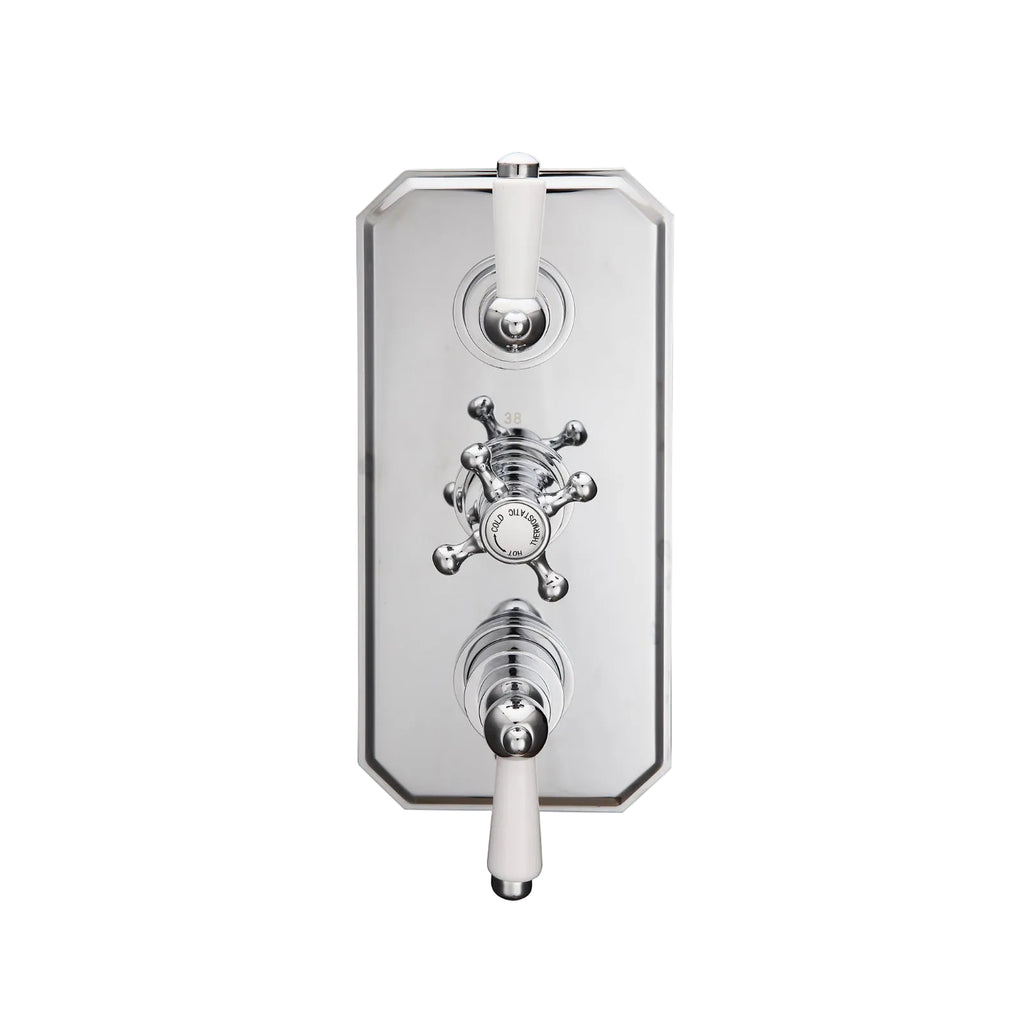

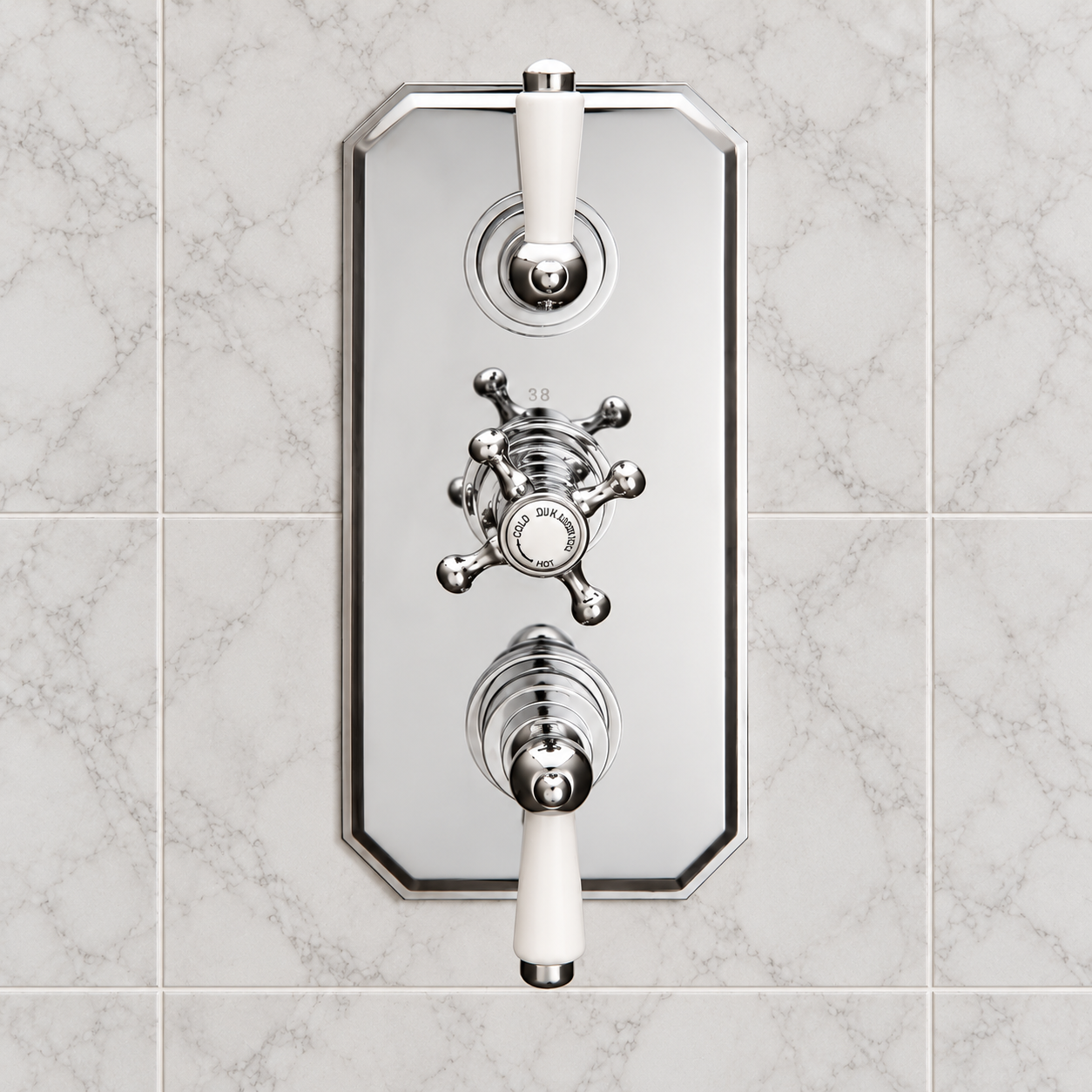

The Pantiles Two Way Concealed Thermostatic Shower Valve

Combine timeless traditional style with the flexibility of a dual-outlet shower system using The Pantiles Two-Way Concealed Thermostatic Shower Valve. Finished in polished Chrome with classic White ceramic detailing, this elegant valve is ideal for Victorian, heritage and traditionally styled bathrooms.

Designed to control two shower outlets, the valve can be combined with accessories such as a fixed overhead shower and a separate handset or slide-rail kit. Its concealed installation keeps the main working components hidden behind the wall, leaving only the decorative brass wall plate and traditional controls visible.

The thermostatic cartridge maintains a comfortable and consistent water temperature, helping protect against sudden fluctuations in the hot or cold supply. The valve is preset to 38°C and features a push-button safety override that allows the temperature to be increased up to 48°C when required.

For additional protection, the valve automatically shuts off if either the hot or cold water supply fails. A durable brass body, brass wall plate and ceramic disc valve provide dependable performance for everyday showering.

Product Features

• Traditional two-way concealed thermostatic shower valve
• Designed to control two shower outlets
• Ideal for an overhead shower and separate handset
• Polished Chrome finish
• Traditional White ceramic indices
• Solid brass valve body
• Brass wall plate
• Zinc-alloy handles with ceramic detailing
• Thermostatic cartridge maintains a consistent temperature
• Ceramic disc valve provides smooth and reliable operation
• Preset safety temperature of 38°C
• Push-button override allows temperatures up to 48°C
• Automatic shut-off if the hot or cold water supply fails
• Suitable for all plumbing systems
• Chrome plated to BS EN 248
• Complies with BS EN 1111
• Manufactured to comply with TMV2 requirements
• 10-year guarantee against manufacturing faults, excluding serviceable parts

Technical Specifications

• Product code: 167.PT2TSV
• Finish: Chrome and White
• Shower function: Two outlets
• Minimum water pressure: 0.5 bar
• Maximum water pressure: 6.0 bar
• Maximum pressure differential: 5:1
• Hot and cold inlets: Two G3/4-inch BSP female connections
• Outlet connection: G1/2-inch BSP female
• Valve body: Brass
• Wall plate: Brass
• Handles: Zinc alloy with ceramic indices
• Cartridge: Thermostatic cartridge and ceramic disc valve
• Product weight: Approximately 4kg

Please Note

This product includes the concealed thermostatic shower valve only. The overhead shower, shower arm, handset, hose, wall outlet and other shower accessories are not included unless stated separately.

For the best performance, the hot and cold water supplies should be balanced. The pressure difference between the supplies must not exceed 5:1.

Frequently Asked Questions

What does a two-way shower valve control?
A two-way valve is designed for a shower system with two outlets, such as a fixed overhead shower and a separate handset or slide-rail kit.

Is this shower valve thermostatic?
Yes. The thermostatic cartridge maintains a consistent showering temperature and helps protect against sudden changes in the hot or cold water supply.

Does the valve have a temperature safety stop?
Yes. The temperature is preset to 38°C. A push-button override allows the temperature to be increased up to 48°C when required.

What happens if the hot or cold supply fails?
The valve automatically shuts off to help protect the user from an unsafe change in water temperature.

What water pressure does the valve require?
The recommended operating pressure is between 0.5 and 6.0 bar. The hot and cold supplies should preferably be balanced, with a maximum pressure differential of 5:1.

Are the shower head and handset included?
No. This product includes the concealed valve only. The shower outlets and accessories should be selected separately.

Can this valve be used with any plumbing system?
Yes. It is suitable for all plumbing systems, provided the required operating pressures and maximum pressure differential are observed.

Does the Pantiles two-way shower valve have a guarantee?
Yes. It comes with a 10-year guarantee against manufacturing faults, excluding serviceable parts.
